Pigment Grinding Experiment

Backgrounds: Ground by Tencan planetary ball mill, matched with Nylon pots and zirconia balls.
Grinding Time: 2 Hours. Result: Granularity of output 100% meet customer’s requirements.

Applied Machine Model: XQM-6

1. Description

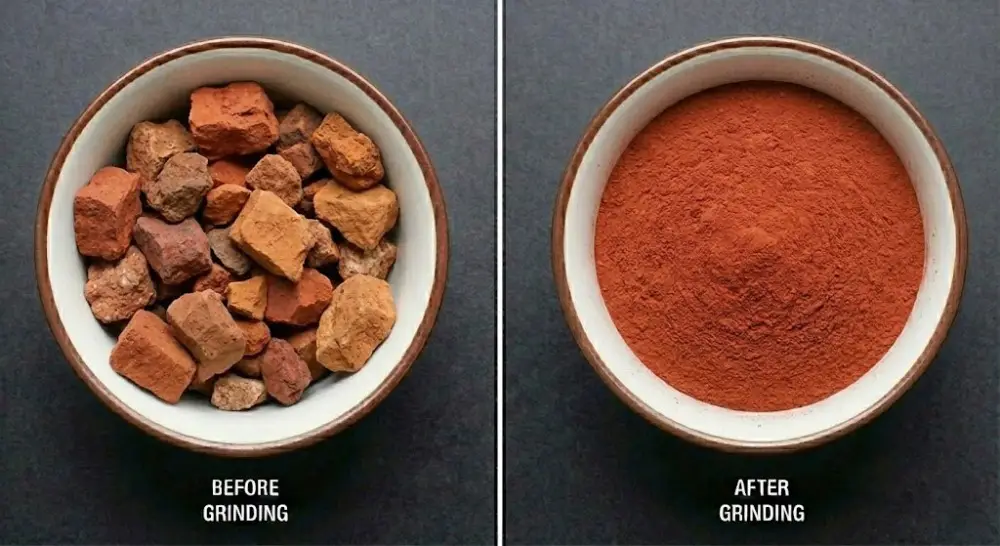

1) Applied Field: Pigment.   2) Material: Cinnabar   3) Feed Size: 100μm.
4) Quantity of Feed: 2kgs    5) Customer’s Request: Less than 20μm.
6) Subsequent Analysis: Application Test

2. Solution:
1) Equipment Selection: Vertical Planetary Ball Mill Model XQM-6.
2) Accessories: Nylon Pots and Zirconia Balls.
3) Running Parameter Setting: Rotating Speed: 500rpm, Positive and Negative Reciprocal Operation after 30-minute running.
4) Grinding Time: 2 Hours
5) Grinding Result: 100%＜20μm
6) Conclusion: Cinnabar can be ground by Planetary Ball Mill Model XQM-6.


3. Application Field: Cinnabar Powder by XQM-6 can be applied into pigment.
